UVIEW
Live Streaming System
Seamless Broadcasting and Immediate Support Solutions
Ideal Solution
for TV Channels
UVIEW uses cellular/digital bands for live streaming, offering optimal solution
for TV, production, and influencers with intelligent content production.
Set of Digital Tools
UVIEW offers digital tools
to monitor live streaming, control distribution, facilitate news production, and archive content.
Innovative Solution for Content Creation
Instantly transfer and broadcast events from
their location to all platforms. Innovative real-time news creation solution.
Reliable Device
Compact device
5-hour battery
Quick startup
Seamless broadcasting
Tech support
Mobile-controlled for remote operation
Fast Cloud Servers
4G Bonding
4K Quality
UVIEW confidently presents itself as an intelligent and professional provider of high speed IP video transmission and data carrying capacity
Highly efficient servers supported by high internet speed and large capacities are available to ensure the flow of live broadcasts at all times.
It uses intelligent technologies to condense the signals of the 4G cellular bands and combine the available capacities into a high-quality encrypted package that helps reduce the differences between transmission and reception to one second.
The system is fully compatible with the H.265 protocol and 5G network technology, ensuring seamless integration and optimal performance.
The devices used in broadcasting and receiving operations are compatible with the INTERCOM internal communication system. The devices can recognize each other through smart electronic linking.
It uses interconnected technologies to integrate communication data on fast processing servers, convert it to video format and transmit it across digital domains in fractions of a second.
The broadcasting Encoder device stands out with its artificial intelligence capabilities to identify cellular towers, capture signals, and create a balance between signals, allowing users to control streaming speeds effectively.

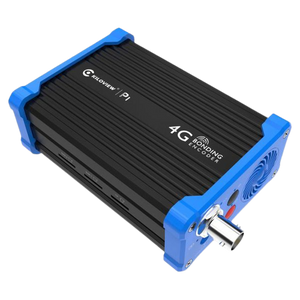

Encoders

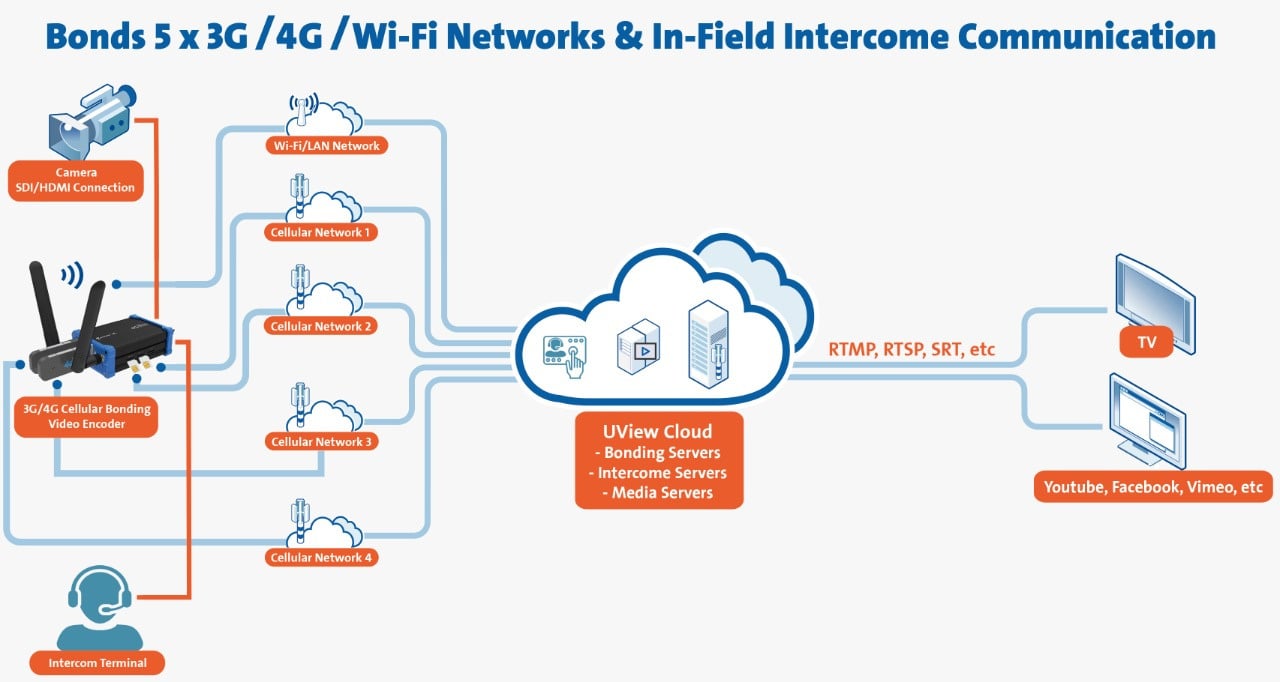

Bonding is the process of aggregating multiple individual connections into a single connection. In other words, bonding can combine the resources of multiple ISPs in order to increase the speed of a single connection.
BONDING SERVER
+ PROTOCOL
The Decoder device is a professional device designed for hardware decoding. It can decode IP video streams in various formats independently and output them through SDI DVI-I signals and signals compatible with HDMI/VGA.
Decoders
Uview is the best option for Connecting TV Channel Offices to central studios without the need for costly satellite transport reservations
It enables remote programs and interviews with guests using modern communication technologies
It offers media institutions live broadcasting solutions for events from any location and at any time

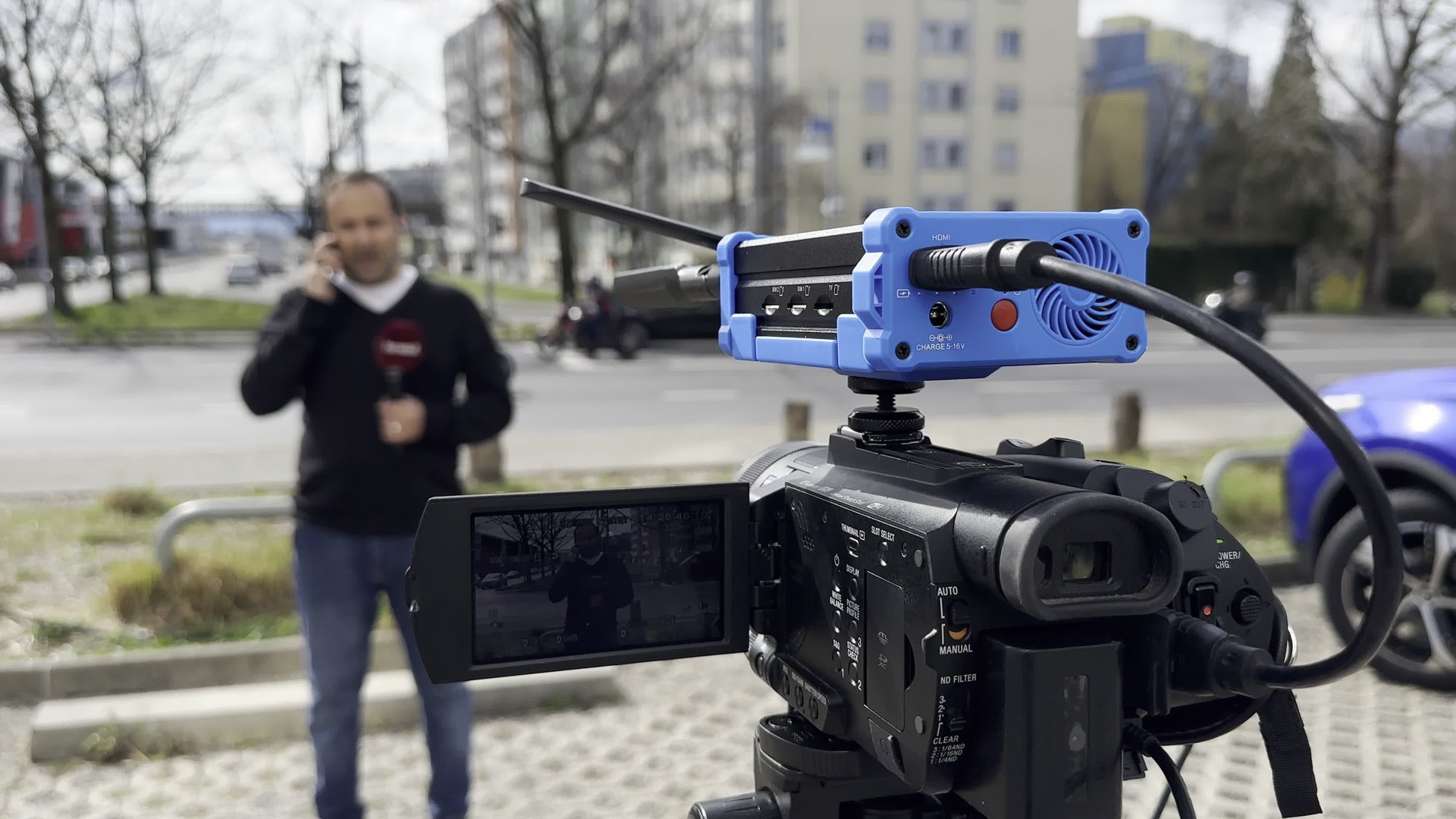

It is also the optimal solution for reporters who aim to transmit events instantly since it only requires a single cameraman
Beyond Us
Horse Race
Elevate Your Moments with Uview's Captivating Live Streams!
Waterfall
Discover a New Dimension of Entertainment with Uview!
Moon Sighting
Experience Life's Wonders Up Close with Uview
Model | Encoder P1 | Encoder P2 | Encoder P3 |
Input | SDI | HDMI | 3G-SDI & HDMI |
Network Support | 4G - LTE WIFI USB Ethernet | 4G / LTE WIFI USB Ethernet | 4G / LTE or 5G WIFI Ethernet |
Streaming Protocols | RTSP RTMP HLS TS SRT | RTSP RTMP HLS TS SRT | NDI | HX RTMP SRT RTSP HLS |
Video Resolution | up to 1080P60Hz | up to 1080P60Hz | 4Kp30Hz / HDMI 1080p60 / SDI |
Video Encoding | H.264/AVC | H.264/AVC | H.265 & H.264 |
Management | Web/App | Web/App | Web/App |
Battery | 5hr | 5hr | 5hr |
Model | Decoder DC230 | Decoder D300 |
Input | 1*RJ-45,100 | 2 *100/ 1000M RJ-45 |
Audio Output | SDI/HDMI | SDI/HDMI |
Video Output | 1 *SD, SD-SDI (270M), HD-SDI (1.485G), 3G-SDI(2.97G); 1*DVI-I, HDMI1.4/ DVI 1.0/ VGA | 1 *SD/HD/3G-SDI, Up to 1080P 60Hz 1 *HDMI 2.0, Up to 3840x2160@60Hz |
Media Protocols | RTMP / HLS/ RTSP / SRT / TS over UDP | RTMP / HLS/ RTSP / SRT / TS over UDP / NDI |HX / ONVIF |
SDI Transmission Distance | SD SDI ≥ 350m; HD SDI ≥ 180m; 3D SDI ≥ 100m | SD SDI ≥ 350m; HD SDI ≥ 180m; 3D SDI ≥ 100m |
Video Decoding | H.264 | H.264/H.265 |
Audio Decoding | AAC/G.711 | AAC/G.711 |
Decoding Delay | <200ms(adjustable) | <200ms(adjustable) |
Decoding Ability | up to 4 channels 1080p30 2 channels 1080p60 | up to 4 channels 4K 30Hz up to 8 channels 1080P 50Hz/60Hz |
Management | WEB | WEB |
Connected Easily
Our Services
POPULAR
(1) Device
1 Bonding 3G/4G-LTE Bonding Video Encoder
Includes 1 RTMP
Bonding Management Interface
(2-4) Devices
4 Bonding 3G/4G-LTE Bonding Video Encode
Includes 4 RTMP
Bonding Management Interface
Testimonials and Reviews
As a seasoned TV reporter, I've covered countless events, and Uview has truly reshaped the way I connect with my audience. The device's exceptional live-streaming capabilities bring an unparalleled immediacy to my reports.
As media professionals, staying ahead in technology is vital for engaging our audience effectively. Uview has been a game-changer for us, revolutionizing event coverage. Its top-notch live streaming quality, reliability, and user-friendly interface have redefined our approach. From breaking news to live shows and cultural events, Uview consistently delivers outstanding results.
